Aluminum Prefabricated MEP Support Systems
An engineered modular support system developed for modern MEP and infrastructure projects. High-strength aluminum profiles, embedded anchor channels, mechanical locking connections, pipe-support components and seismic fittings work together as one integrated structural system.
Annual production capacity for aluminum prefabricated connection systems.
Ultra-high-strength aluminum structural components.
Embedded channel fatigue performance verified by testing.
Improved anti-slip performance through mechanical locking design.
Why Replace Traditional Steel Support Systems?
The system combines high-strength aluminum material technology with integrated forming, mechanical locking and modular installation to address structural weight, corrosion, electrical losses and connection reliability in long-life infrastructure.
Lightweight & High Strength
Aluminum density is approximately one-third that of carbon steel, reducing structural dead load while specialized structural components can reach tensile strength up to 728 MPa.
Non-Ferromagnetic & Zero Eddy-Current Loss
Unlike ferromagnetic steel supports, aluminum does not generate eddy-current losses around high-current cable systems, making it particularly suitable for electrical infrastructure.
Long-Life Corrosion Resistance
Aluminum avoids many of the corrosion limitations associated with conventional carbon-steel systems and is well suited to humid underground infrastructure.
3D Wedge Mechanical Locking
A three-dimensional wedge and mechanical key-lock structure creates stable engagement between mating components rather than depending only on bolt tension.
Integrated Forming Without Weld Weakness
Integrated forming reduces weak points caused by conventional welding, riveting and bending processes while preserving material strength.
High Fatigue Resistance
The embedded channel system has been tested for 2 million fatigue cycles, supporting application in infrastructure exposed to long-term dynamic loading.
More Than an Aluminum Strut Channel
The system integrates anchorage, mechanical connection, load-bearing profiles, pipe restraint and seismic components into one prefabricated support architecture.
Rooting Unit
Provides the connection between the primary building structure and the modular support system.
- ■ Embedded Anchor Channel
- ■ T-Bolt System
Supporting Unit
Forms the primary load-bearing structure supporting MEP pipelines, electrical services and equipment.
- ■ Aluminum Support Profiles
- ■ Bases & Connectors
- ■ Locking Assemblies
- ■ Seismic Connectors
MEP Restraint Unit
Connects MEP pipelines and services securely to the structural support framework.
- ■ Pipe Clamp System
- ■ Supporting Accessories
Aluminum MEP Support Components
Select individual components or work with our engineering team on a complete prefabricated MEP support configuration.
Aluminum Support Channels
High-strength aluminum load-bearing profiles forming the primary structural framework of the prefabricated support system.
- ■ High-strength aluminum construction
- ■ Integrated structural profile
Embedded Anchor Channels
Cast-in anchor channel systems providing a reliable structural rooting point for the complete aluminum support assembly.
- ■ Integrated structural design
- ■ 2 million fatigue cycles tested
T-Bolts & Locking Assemblies
Mechanical locking components using three-dimensional wedge and key-lock geometry to improve connection stability under long-term loading.
- ■ 3D wedge mechanical locking
- ■ +83% slip resistance
Bases & Structural Connectors
Modular bases, connection fittings and structural accessories used to assemble aluminum profiles into complete load-bearing support structures.
- ■ Modular mechanical assembly
- ■ No traditional site welding required
Aluminum Pipe Clamp Systems
Pipe restraint and fixing components integrating mechanical and process piping with the aluminum structural support system.
- ■ Integrated MEP support architecture
- ■ Modular installation
Seismic & Complete Support Assemblies
Seismic connectors and complete modular support assemblies configured around project-specific MEP layouts and structural requirements.
- ■ Seismic connection components
- ■ Complete engineered assemblies
Our Aluminum Support System vs. Conventional HALFEN-Type Systems
The difference goes beyond replacing steel with aluminum. Our system redesigns the embedded channel, support profile and connection structure to improve fatigue performance, anti-slip capability and long-term connection stability.

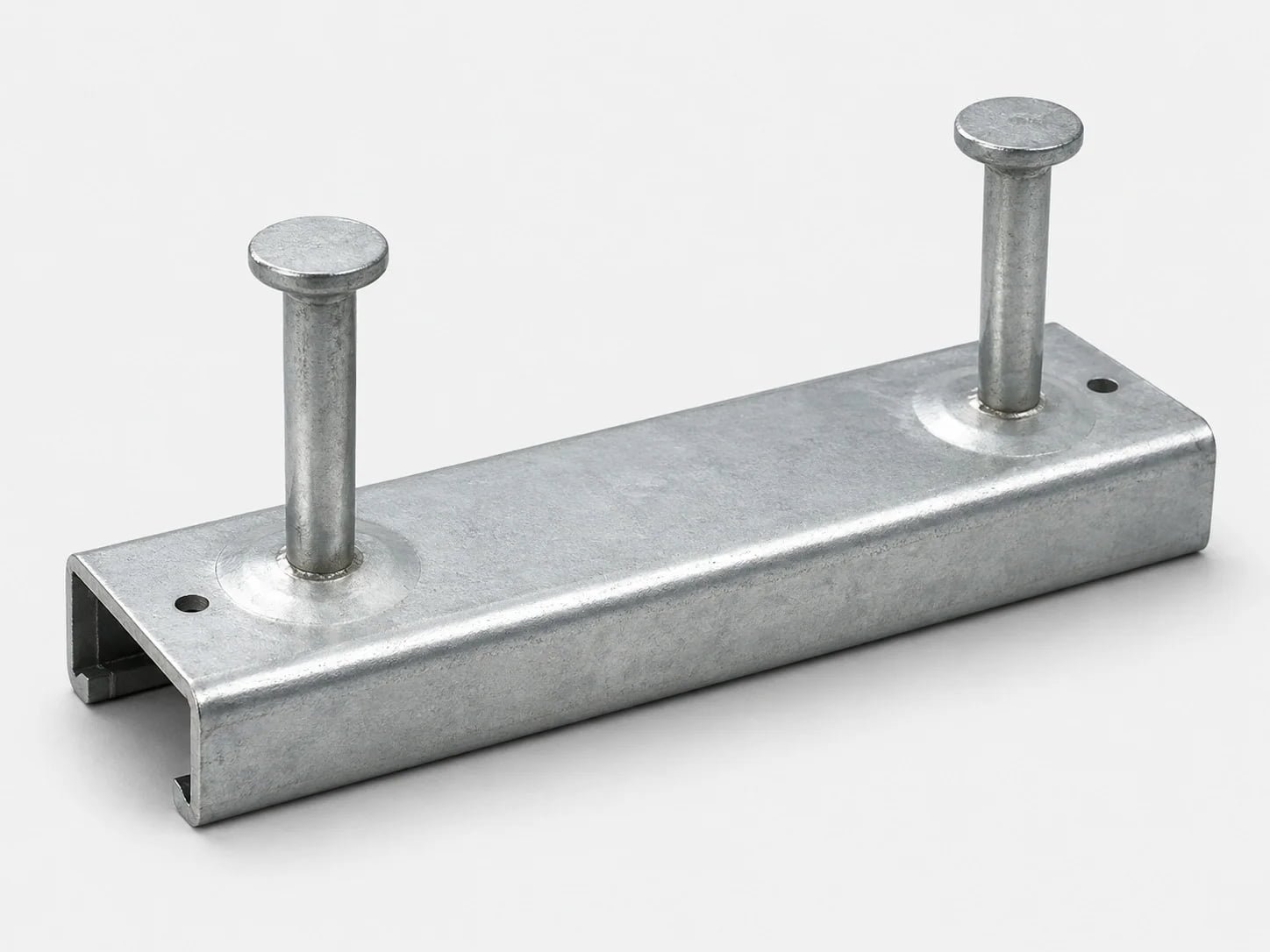

HALFEN-Type Steel System
Conventional steel embedded channel and C-channel support profile.
Connection engagement relies significantly on bolt clamping force.
Referenced embedded-channel fatigue performance: approximately 500,000 cycles.

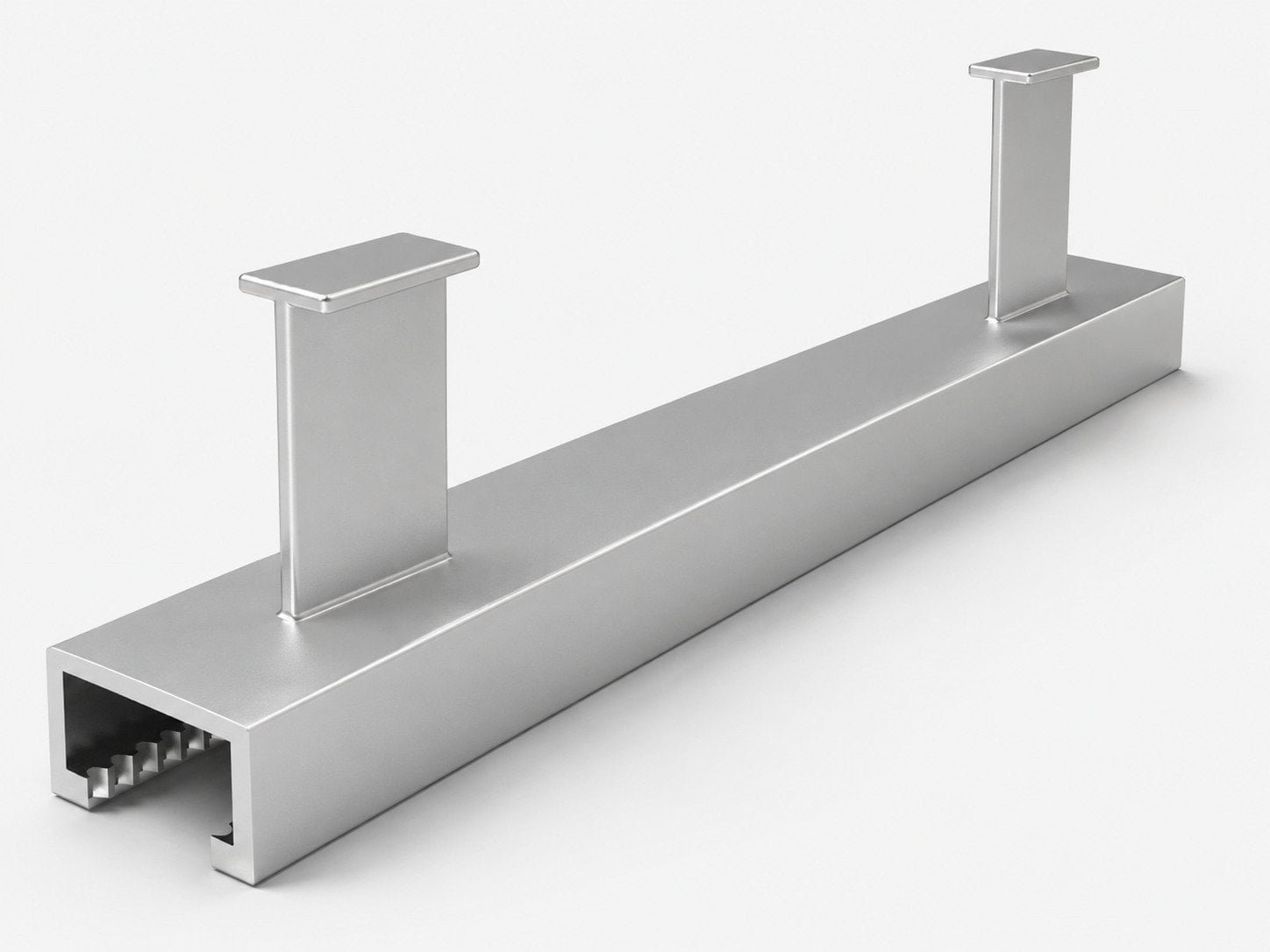

Lonsonstrut Aluminum System
Integrated embedded channel and high-strength aluminum support profile.
3D wedge and mechanical key-lock structure creates positive mechanical engagement.
Embedded-channel fatigue performance tested to 2,000,000 cycles.
| Engineering Comparison | Conventional HALFEN-Type System | Lonsonstrut Aluminum System |
|---|---|---|
| Embedded Channel | Conventional HALFEN Embedded Channel | Integrated Aluminum Embedded Anchor Channel |
| Support Profile | Steel C-Channel | High-Strength Aluminum Support Profile |
| Structural Construction | Conventional riveted or welded multi-part structure | Integrated forming without welded weak points |
| Mechanical Engagement | Indirect engagement generated mainly by bolt clamping force | 3D wedge + mechanical key-lock engagement |
| Anti-Loosening Principle | Connection stability depends heavily on bolt preload | Mechanical locking between mating components |
| Embedded Channel Fatigue Test | Approx. 500,000 cycles | 2,000,000 Cycles |
| Slip Resistance | Conventional mechanical engagement | +83% improved anti-slip performance |
| Structural Material | Steel | High-Strength Aluminum Alloy |
| Magnetic Properties | Ferromagnetic steel | Non-Ferromagnetic |
Fatigue Test Cycles
2 million tested cycles compared with approximately 500,000 cycles for the referenced conventional embedded channel.
Slip Resistance
Mechanical key-lock geometry significantly improves resistance to longitudinal displacement.
Wedge Locking
Mechanical engagement comes from mating geometry rather than relying only on bolt clamping force.
Eddy-Current Loss
Non-ferromagnetic aluminum avoids the eddy-current losses associated with conventional steel support structures.
Comparison values above are based on the structural comparison and test information contained in our aluminum prefabricated support system technical documentation. Project-specific performance should be confirmed against engineering drawings, load calculations and applicable project standards.
High-Strength Aluminum vs. Q235 Steel
Mechanical property comparison based on the material data used for the aluminum prefabricated support system.
| Engineering Parameter | Q235 Carbon Steel | High-Strength Aluminum | Ultra-High-Strength Aluminum |
|---|---|---|---|
| Tensile Strength | 320 MPa | 385 MPa | 728 MPa |
| Yield Strength | 235 MPa | 295 MPa | 604 MPa |
| Shear Strength | 125 MPa | 207 MPa | 377 MPa |
| Density | 7.8 t/m³ | 2.7 t/m³ | 2.8 t/m³ |
| Magnetic Properties | Ferromagnetic | Non-Ferromagnetic | Non-Ferromagnetic |
| Eddy-Current Loss | Present | Zero | Zero |
| Low-Temperature Brittleness | Material dependent | No low-temperature brittleness | No low-temperature brittleness |
Built for Long-Life Infrastructure
Particularly suited to projects where service life, corrosion resistance, dynamic loading and electrical performance are important engineering considerations.
Utility Tunnels
Modular support systems for underground utility corridors, multi-service conduits, and municipal pipeline infrastructure.
High-Voltage Cable Systems
Non-ferromagnetic aluminum support structures for high-current transmission and underground power installations without eddy current losses.
Metro & Rail Transit
Support infrastructure designed for dynamic vibration loading, fatigue resistance, and rigorous underground transport environments.
Airports & Transportation Hubs
Prefabricated building connection and long-span MEP support systems for expansive airport concourses and terminal hub facilities.
High-Rise & High-Standard Buildings
Lightweight modular support structures that reduce structural dead load while simplifying complex mechanical and electrical routing.
Power & Pumped-Storage Projects
Corrosion-resistant modular structural support solutions engineered for hydro shafts, damp powerhouses, and heavy-duty energy facilities.
Selected Major Infrastructure Projects
Zhengzhou Matougang 220kV Cable Project
Full deployment of non-ferromagnetic aluminum support frames preventing eddy-current induced heating across high-voltage transmission lines.
Xi'an Jiushi Road Utility Tunnel
Modular pre-fabricated multi-tier piping and electrical racks with cast-in concrete insert channels for 50-year structural reliability.
Xiamen Tianma 220kV Substation Tunnel
High-strength corrosion-resistant support assemblies engineered for coastal humidity and dynamic seismic safety requirements.
Developed as an Engineering System, Not a Commodity Profile
Our aluminum prefabricated connection technology integrates material development, structural design, manufacturing technology, system engineering and installation methods into one coordinated product platform.
Material Development
High-strength and ultra-high-strength aluminum technologies for structural applications.
Structural Engineering
Integrated profiles, mechanical locking structures and modular connection systems.
Manufacturing
Integrated production of next-generation aluminum prefabricated connection systems.
Testing & Standards
Material, fatigue and structural-performance validation supported by industry standards.
Manufacturing & Technology Snapshot
